FED-2: A 35mm Film Rangefinder From the USSR

With Industar-10

9 min read by Dmitri.
Published on . Updated on .

FED-2 (pictured: variant II) is a beautiful Russian camera with its share of flaws and imperfections. A Soviet copy of the Leica II for less than $100.

The model I got came with the foldable 50mm 𝒇3.5 Industar-10 lens that has patinaed to reveal its brass barrel. FED-2’s shutter speeds are 25-500th of a second with Bulb.

The eye relief on the rangefinder is not great; it has a 0.75х magnification factor. The viewfinder comes with a dioptry adjustment, and it is reasonably bright. The rangefinder patch is round, just like on FED-5, with decent contrast. Loading fim into FED-2 is a bit tricky and the camera’s frame counter is somewhat unusual.

English websites tend to list a, b (pictured), c, d, L, and e as variants for this camera. However, the Cyrillic alphabet doesn’t quite work like that — plus I found a Russian website with a much more comprehensive catalogue, according to which, my copy Variant is II.

FED is an acronym for Felix Edmundovich Dzerzhinsky, in Russian: Фе́ликс Эдму́ндович Дзержи́нский. His legacy is with the Soviet secret police and the children’s labour commune, which eventually transformed into the factory that made this camera.

A total of 1.63 million of these cameras were manufactured in Soviet Russia☭ between 1955 and 1970.

 ☝︎ Further reading:A Beginner’s Guide to Shooting Manual Film Cameras.”

The design.

FED-2’s build quality is far from perfection. Its mechanics have low precision tolerance, it’s shockingly heavy for the size, and the design is for the large part “borrowed” from the German Leicas II and III.

However, FED-2 introduces a series of improvements over the first Leica it copied not found on its German counterparts. This includes a combined rangefinder/viewfinder with an extended base, a removable backplate for easier film loading, and a dioptry adjustment.

FED-2’s body features textured metal instead of leatherette for the grip. It’s a tank.

FED-2 weighs 604 grams with the lens. Compared to FED-5’s massive 732g, FED-2 feels “denser” but lighter: FED-2 could fit into a wool jacket pocket with its collapsable optics; FED-5 requires a forklift. 😏

FED-2 vs FED-5 size comparison.

Despite its imperfections, I found FED-2 to be a visually irresistible camera. The brassing, the patina on the textured metal grip, the typography on the lens barrel, the strange but not unusual for the time frame counter, and the all-metal construction. As a shelf piece, FED feels prettier and more interesting than the Leicas of the period, less “clinical.” It’s also a lot less precious, costing roughly 1/10th of the price.

Camera handling and ergonomics.

FED-2 has an excellent grip, it feels much firmer in hand than the beautiful Vitessa, and unlike the latter FED-5, it comes with a good set of strap lugs.

FED-2 with Industar-10 lens fully extended and ready to shoot.

Readying the lens is easy: pull and then twist clockwise. The tiny tab that lets you change the aperture looks ridiculously small and dangerously close to the glass but works quite well, and it doesn’t facilitate any smudging.

Focusing with the Industar-10 lens is somewhat confusing. It clicks at the infinity mark, making precise adjustments at far distances impossible. The large metal tab looks like it would point toward the distance markings; however, the actual pointer is a small dark grove on the opposite side.

The rangefinder/viewfinder combo is tiny and isn’t recommended for spectacled photographers. It will scratch your lenses; instead, use the dioptry adjustment, a small lever next to the film rewind knob; it’s rather neat, given you can get it to match your prescription. There are no bright lines or any information, though the finder is reasonably bright, and I’ve had no issues focusing in subdued light. The mechanism has a remarkably large triangulation base, which suggests better focusing precision, though I did not find that to be the case.

The mushroom-shaped winder/frame counter combo on the right side of the top plate is nice. Some may prefer a lever or motorized advance; with FED, however, chances are you’d be shooting slow. The mark next to the frame numbers on the winder dial indicates where we are; once you advance to the next frame by rotating the winder clockwise, the next frame number will align with the mark. After you’ve loaded a fresh roll, you can slide the numbers ring independently of the winder until it reaches zero.

Setting the shutter speed can only be done after you’ve wound your film onto the next frame by lifting and twisting. You also can’t switch between 500 and B by rotating the head clockwise — instead, you’ll need to twist it around in the opposite direction.

The shutter button on my copy doesn’t feel very smooth, and the curtain slap is fairly severe. I wouldn’t recommend shooting this camera hand-held at anything slower than 100. This FED makes a stereotypical “clack sound,” so it’s not very sneaky either.

Rewinding film on FED-2 is annoying. Unlocking the winder is rather awkward: the thick metal ring around the shutter button needs to be rotated clockwise, towards the Cyrillic “п” — short for “произвольно” and at the same time pressed into the body until it stays in the down position. Now you can rewind the film with the small extendable winder knob on the opposite side; I found it slow and straining.

How to load film into your FED-2.

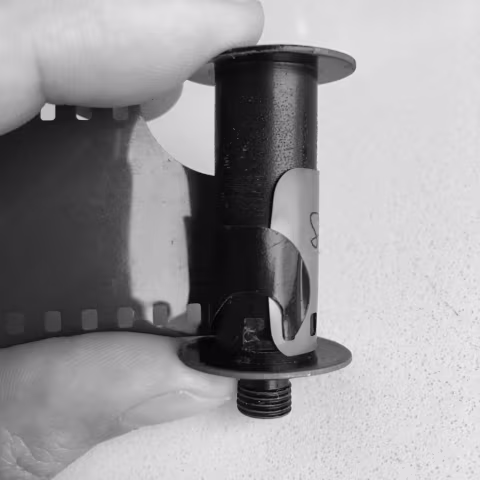

Loading film onto FED-2 take-up spool.

Loading film into FED-2 is different but not difficult — just enough to warrant a chapter title.

The worst part is taking off the cover, locked by two lugs on the bottom plate — an operation that leaves you with little grip on the camera and lots of opportunities to add finger oil smudges on the glass.

The take-up spool (pictured) can be pulled out for ease of loading though it isn’t necessary. Your film would fit in the camera upside-down with its last perforation needing to be “hooked on” to the spool.

With that done, the spool, film canister and back cover can be reinstalled, and you can fire off the first shot.

Fujicolor Superia 200 with Industar-10.

Image quality with Industar-10.

I love how the lens looks, however, this Russian copy of M39 Elmar is quite soft when shot at 𝒇3.5, particularly in the corners. This wouldn’t be much of an issue if the camera didn’t shake as much during the shutter’s curtain slap, limiting the speeds available for hand-held action. Stopping down to optimal resolution means shooting at around 𝒇8, which makes photographing in subdued light tricky.

This camera/lens combo makes the sharpest images at 𝒇5.6, 𝒇8, and 𝒇11 with either 1/250 or 1/500s. This means you have about six optimal stops of light to play with. Optimal is a relative term, of course.

That is not to say that the lens is unusable at 𝒇3.5 — there’s just a bit more definition missing, particularly from the edges. But in the right light, no one will notice. The shaky shutter curtain is likely to cause a lot more smudges and blur than the lens.

Learn more about this lens in the dedicated review of the Industar-10.

Repairs and maintenance.

Fresh out of the box, the lens’ infinity setting did not match the rangefinder patch indication. This is typical on cameras of this type and age; luckily, calibrating the rangefinder patch on FED-2 is easy. A screw on the top plate, just above the lens barrel, immediately underneath the “Э” letter covers the adjustment access. Removing it with a small, long screwdriver will reveal a hole where you can place your driver — rotating the screw underneath will move the patch up and down. You can use this method to set the infinity mark.

Further adjustments can be made by following this guide, found on Pentax Manuals.

 ☝︎Further reading: A perfectly adjusted rangefinder patch may not prevent the lens’ focus from drifting if it’s not calibrated correctly. On film cameras, verifying focus could be either lengthy — shooting an entire roll, developing, and scanning — or expensive — with tools like autocollimator. However, there’s another method that I’ve developed that lets you preview near grain-level sharpness in real-time with a cheap microscope and sticky tape.

FED-2’s rubberized curtain damage on film.

Another culprit on my FED was its weathered shutter curtain. Over the years, it deteriorated, perhaps dried or melted by the sun entering the lens, resulting in a nasty artifact in the middle of the images. Curtain replacement is a laborious process, which is difficult to justify even with the beaut that FED-2 is. Instead, I used a liquid rubber putty to carefully plug the pinholes in the shutter curtain without doing any of the work requiring stripping and rebuilding. The entire repair process took about twenty minutes and fourteen dollars in materials. This Lomography blog post has the details.

I’ve also disassembled and cleaned the lens elements from grime and fungus — not too hard with the right tools, considering that there are only three groups. The technique I used is soaking the glass in hydrogen peroxide for 5 minutes, the gentle wash with soapy water and a wipe with a lens cloth. This cleared up a lot of the colour degradation and added plenty of detail to my images.

Kodak Royal Gold 400 shot at ISO 200 with Industar-10.

FED-2 can undoubtedly make good photos when handled well. It’s a little limited due to its quaky shutter, but newer Soviet lenses can improve that. You may even attempt to mount fancier Leica lenses of the era, though it may involve some risks as the designs differ slightly. And you can certainly use your Industar-10 on M39-compatible bodies.
