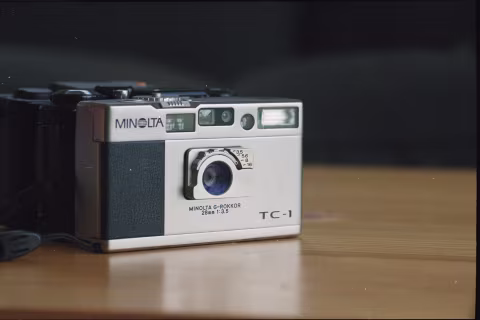

Minolta TC-1 isn’t just an expensive camera. It is a complex, innovative piece of ultra-compact technology powered by the nearly two-hundred-year-old chemical process. Film.
This camera is both a cult classic and a capable shooter. While limited by the maximum aperture of 𝒇3.5, it’s remarkably compact; its versatility is further stretched by the shutter speed that goes up to 1/750th of a second*. The images it produces from the 28mm aperture priority min dist. 45mm lens are sharp and very contrasty. Handling Minolta TC-1, despite its blocky design and tiny buttons, is easy: its titanium shell and solid controls make every adjustment feel firm.
Switching TC-1’s aperture makes for quite a show: each step towards 𝒇16 drops a tiny circular mask like a phoropter. Not to be out-gunned, this tiny Minolta comes with a built-in flash, auto-exposure, auto-focus, motorized film transport, motorized bellows, and motorized lens cover. Its firmware provides ample control over ISO, exposure compensation, spot lock, distance lock, flash modes, timer, and manual focus.
TC-1’s magic-like technical advancements are earth-bound by brittle electronics, loud operation, and a small viewfinder. It is also very expensive, with eBay prices currently ranging from $1,000 to $5,000, passing its production-time listing price of $1,000 or $1,300 when adjusted for inflation.
*The 1/750 max shutter speed on TC-1.
Succinctly, the 1/500 and 1/750 shutter speeds of a Minolta TC-1 camera are only available at 𝒇3.5 and 𝒇5.6.
The manual explains that the shutter’s secondary aperture negates 𝒇3.5 and 𝒇5.6 perfectly-circular apertures during exposure conditions above EV 11.5.
So what does that actually mean?
Unless it’s “ultra-high performance,” it’s not worth having. Unless it’s “ultra-small,” you won’t feel like carrying it around. “Ultra-high performance” and “ultra-small”: TC-1 engineers dared to confront this conflicting proposition. And the result is an ultra-precise camera wrapped in a robust titanium shell. This camera’s miniaturized workings might just be the thing to bring out your wistful joy of taking pictures.

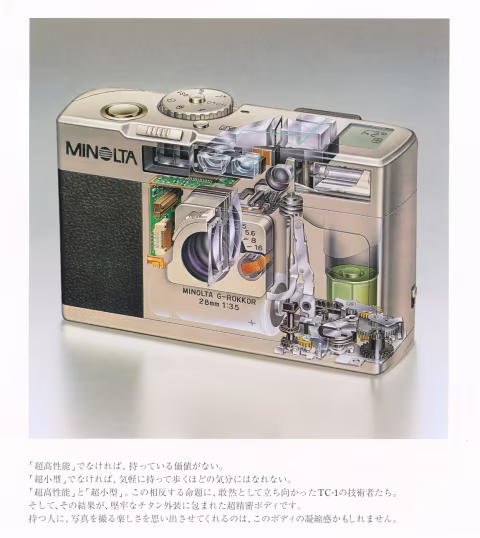

Above: a scan of a Japanese promo brochure, courtesy Chris Whelan of Yashica Sailor Boy.
Minolta TC-1 is an aperture priority camera and a fully-automatic point-and-shoot.
You can leave your TC-1’s aperture at 𝒇3.5 and shoot it as if it was a fully-automatic camera. It will be able to correctly expose scenes for which you’d otherwise have to have an aperture of 𝒇25 or top shutter speed in excess of 1/10,000 — thanks to the Automatic Aperture Priority Compensation (AAPC).
For example, you can use your TC-1 at 𝒇3.5 in full sun with ISO 800 film.
TC-1’s top shutter speed is actually 1/350 if you use it in aperture priority — which Minolta claims to be an already “world’s fastest” for electronically-controlled leaf blades. However, when you set the lens to either 𝒇3.5 or 𝒇5.6, and there’s too much light for the 1/350, the AAPC kicks in by increasing the shutter speed to either 1/500 or 1/750 and diminishing the size of an actual aperture up to 𝒇13.5.
The technology behind the shutter speed boost dates back to 1959’s Minolta V2, a leaf shutter camera that boasted 1/2000 max shutter speed. V2 was only able to accomplish this at apertures of 𝒇8 and narrower by decreasing the distance that the leaf shutter blades need to travel to actuate. TC-1 uses the same principle by only allowing its shutter blades to open to 𝒇13.5. AAPC isn’t available on apertures 𝒇8-𝒇16.
So why should you bother with the aperture priority operation when keeping the camera at 𝒇3.5 provides even more exposure range minus the effort? The slight limitation that gives TC-1 the slowest shutter speed at 𝒇3.5 of 4 seconds vs. 8 seconds on 𝒇5.6+ isn’t it. According to Minolta, it’s the perfectly-rounded aperture rings that you want, which create a better bokeh. A deliberate control over depth of field helps, too.
✪ Note: flash will not sync in AAPC mode.
Minolta TC-1’s perfectly-circular aperture rings.
Of all the technical advancements TC-1 brings to the table, its perfectly-circular aperture rings sound like the least practical one.
Aperture shape certainly matters. You can see it in solar flares and in bokeh/out of focus areas. If it is close to a perfect circle, the blurred areas may appear to have less noise. But on a 28mm lens with 𝒇3.5 and excellent anti-reflective coating, it’s rare to notice these things. Most of the time, everything’s in focus, especially at smaller apertures like 𝒇5.6, 𝒇8, and especially at 𝒇16.
Though TC-1 would produce no worse images if it didn’t have a perfectly-circular aperture, it is an exceptional feature. Just seeing and interacting with the little round masks as they pivot on top of each other feels surreal.
Minolta G-Rokkor 28mm 1:3.5 lens.
This 28mm is considered one of the best for the focal length. So much so that there are a few anniversary editions of the Minolta G-Rokkor 28mm 𝒇3.5 lenses out there for LTMs, which are highly sought-after collector items. Bellamy Hunt/JCH’s mentor says TC-1 has “the best bloody lens to ever grace a compact camera,” and George from Negative Feedback “can’t believe how nice” the images are that it produces.
✪ Note: The anniversary edition Minolta G-Rokkor 28mm 𝒇3.5 LTM lenses come with traditional aperture blades.
The lens is undoubtedly very sharp, corner-to-corner, and quite contrasty. It produces minimal flare, attributed to excellent coating and a hand-assembled unit with superb stray light absorption. The bokeh, when you get it, indeed looks very smooth, and the acuity persists even when the aperture is wide-open.
This G-Rokkor features aspherical elements which allow for otherwise impossible light-bending. You will also notice that its front element is peculiarly concave, which may be contributing to the characteristic vignetting in the photographs this camera produces.
TC-1’s tiny lens is mostly adequate at correcting barrel distortion, but some bulging may be noticeable in certain scenes — an easy fix in Photoshop.
Specs aside, TC-1’s 28mm Minolta G-Rokkor seems to be capable of creating hyper-realistic photographs with an enormous amount of detail. It corrects distortions/aberrations well and manages to add its distinct character thanks to the slight vignetting. Its strong contrast often enhances depth ques, giving images it produces the “pop” that some photographers find alluring.
While this G-Rokkor may be suitable for most of your 28mm needs, it takes a little time to get used to. I found that it works best with a slightly different set of emulsions than my other lenses — the contrast could be too much in some cases. And it’s one of the slowest ones at 𝒇3.5; even TC-1’s excellently-balanced shutter button won’t help if you need to take a picture at 1/4th of a second. There is a tripod hole at the bottom plate but no shutter release thread, no flash sync port, and no hot-shoe.
Shooting with flash on Minolta TC-1.
Shooting flash on film can get daunting or even annoying when the camera powers it up for each frame by default.
Thankfully, TC-1 remembers your flash preferences across power cycles and defaults to no-flash. It also comes with three modes: red-eye reduction, “Night Portrait,” and normal. The manual states that it has a guide number 7 at ISO 100 with a maximum range of .45-2m and a recycle time of 5s.
The “Night Portrait” mode, aka fill, keeps the shutter open after firing the flash until the entire scene — not just the parts that the flash can reach — is adequately exposed.
Because TC-1’s flashbulb is rather tiny, Minolta recommends using 𝒇3.5 to avoid under-exposure.
TC-1’s controls, viewfinder, and menu system.

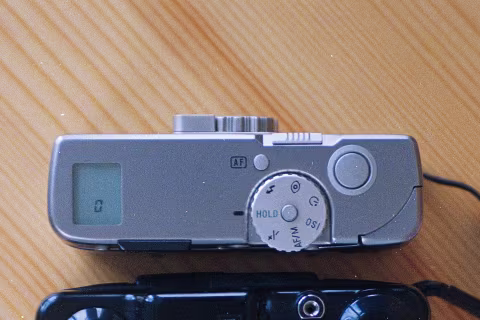

To solve the dilemma of a small control surface and an enormous amount of features, Minolta fitted the camera with a large dial/toggle combo. The dial rotates to either HOLD, flash, red-eye reduction, timer, ISO, AF/M, or exposure functions which render the LCD with the options for the toggle (the tab just above the [AF] button) to switch.
Adding the ON/OFF button, the aperture lever, and the shutter button makes for all the key controls for this camera. The learning curve for TC-1 is steep, even without a manual. Within a few days of shooting, I was able to hold and operate my TC-1 with just my right hand.
The AF/M dial function is a manual focus override for TC-1 that lets you cycle through logarithmically arranged distance presets between .45m and 99m. And to avoid missed shots while fiddling with zone focusing, Minolta added an autofocus reset button.
In the viewfinder window, there’s a needle indicator that slides along the .5m-∞ scale, like the one on PC35AF. Very helpful for telling where the camera’s focus would fall and if it needs to be adjusted. A green lamp in the top corner will blink if the camera cannot find focus, which defaults TC-1 to 10m for ambient light and 2m when you have your flash on. The same lamp will blink fast, and the camera will refuse to take a picture when you get too close to the subject — a failsafe that you can override with the manual focus engaged.
As expected, focus-lock can be set by holding the shutter button half-way down as you point at your subject with the circle outline in the viewfinder.
Despite its small size, the viewfinder features coated glass surfaces to avoid flaring and a prism-laden duct designed to get your eye-line as close to the lens as possible. This often-overlooked feature makes the parallax shift on close-ups a simple step down instead of the typical creep to the right and out-of-the-frame.
TC-1’s exposure info is a little clumsy though still informative. Shutter speeds are indicated within the viewfinder with little red numbers from 8 to 500, where a combination of 8 and 30, for example, implies 1/15. A blinking 8 would mean that the shutter speed is slower than the 1/8th. A blinking 500 implies 1/750, and a frantically-blinking 500 is an over-exposure warning. You may also probe your exposures by reading the LCD on the top plate, which will print an exact shutter speed, labelled as Tv# (time value), while the camera is in focus-lock.
TC-1’s center-weighted exposure estimates can be overwritten with a spot meter by holding the SPOT button just underneath the dial, which will measure the light within the square brackets inside the circle. The exposure function, indicated by +/- on the dial, will also let you over- or under-expose your metered scene by up to 4 stops in either direction. You can also override the camera’s DX-code reader with a manual ISO setting.
You may even change how your spot meter works by simultaneously holding the ON/OFF and SPOT buttons and toggling between SP1 and SP2. SP2 will let you press the SPOT button once to hold the reading until you press it again; in SP1, you have to keep pressing the spot button to hold the reading until you release it. I find SP1 to be most suitable for my style.
The dial’s HOLD function will lock it in-place and reveal a frame counter when the camera is turned on. Pressing the button on top of the dial while rotating it releases the lock.
There’s also a dioptry adjustment on the viewfinder, an LCD backlight button, a film-rewind pin button, a battery door latch, and a film door latch.
Loading film into TC-1 is as simple as lining up the emulsion’s tip with the mark and closing the door. Unfortunately, you will not be able to squeeze 40 frames out of a roll like a manual camera can sometimes allow. There’s also no way to do a double-exposure, and it’s not recommended to use IR films with your TC-1 as they may get fogged by the internal sensor emissions.
Overall, none of the controls feel excessively fidgety or too small in my average-sized man-hands though they do take a few days to get used to. The auto-focus is spot-on in pretty much every frame. Though the center-weighted exposure may get “fooled” when shooting against the light, particularly indoors.
Minolta TC-1 build quality.
If there’s a single piece of modern technology that TC-1 can be compared to in terms of build quality, it would be an iPhone. Tight tolerances, small but usable controls, and surprising durability. Apple, however, has it easy with virtually no moving parts, while Minolta adds a relatively powerful motor, a battery compartment, plenty of physical controls, and top-quality full-frame optics that don’t require image processing to make good photographs.
According to the Japanese brochure (see Appendix 1) the engineers spared no metal parts for the buttons to ensure solid, consistent performance over the years. The titanium shell and chassis they use wrap the guts into a very durable package that remains relatively light. The only plastic element you’ll notice is the bezel around the viewfinder — even the battery door is metal.
Helped by clever button arrangement, titanium grip lines on the back cover and the black leather insert at the front, the camera feels surprisingly comfortable in hand. Its durability and size make it easy to slip into a pocket without much worry.
The only element of the package where Minolta seems to have decided to cut spending is the wrist strap. Thankfully replaceable, it feels cheap and raggedy.
TC-1 motor drive.
Minolta claims its miniature motor to be a major advancement in technology of the time. Meant to replace a typical two-unit configuration, it controls the film transport, lens bellows, and lens cover with enough power and efficiency to drive the camera for months of operation on a single cell.
There’s something magical about seeing this camera power-up. On command, the thin metal cover slips out of the way, and a tiny lens emerges from within the magic block of technology. But the ugly downside to this beautiful operation is the loud, raspy noise it produces each time. Since the same motor drives film transport, the noise follows each shot taken.
TC-1 is my loudest camera, which makes taking candid shots rather tricky. It’ll stay discrete on the street as the traffic is usually loud enough to cover up the noise, but it’s a distraction in a home setting or out in nature.
When the camera stops working.
There are still people out there who can fix those cameras. In Vancouver alone, two shops can take a look at your TC-1: VanCam and Camtex. That being said, there are limits to how much can be done as there are no spare parts, and the repair knowledge is scarce.
I wasn’t able to find any repair manuals online, with the only article pointing to solving an issue being a “stuck lens” solution on Reddit. Your best bet for fixing this camera yourself would probably be explorative deconstruction — at your own risk.
I’ve learned the hard way that TC-1 hates humidity, to the point of completely locking up. Thankfully, whenever this happened, the camera regained consciousness after a few hours of reacclimating in my warm, dry apartment. So if yours is acting up, some time in a controlled environment may just be all it needs to “get well.”
A brief history.
Minolta, at the time of TC-1 production, was an almost centennial Japanese camera company. It was founded in Osaka back in 1928 and got to call many firsts since, much of which was for their SLR system. Minolta went to space with Friendship 7 and got into a massive lawsuit with Honeywell (which it lost). Eventually, Minolta merged with Konica in 2004, stopped making all camera equipment in 2006, and transferred its knowledge to Sony.
TC-1, the 1996 Camera Grand Prix by Camera Journal Press Club of Japan (CGPCJPCJ) winner, is the product of Minolta’s last decade in existence.
Who is this camera for?
TC-1 is meant to be constantly taking pictures. The camera’s exquisite finish, materials, and design aren’t nearly as valuable as the photographs that it may create. It can handle some abuse, being at least as durable as an iPhone, but replacing TC-1s is more difficult as they are no longer being produced.
Though this camera has a superb lens and many manual overrides, it will not work with a shutter release, it does not have a bulb mode, and there’s no accessory shoe. If these things matter to you, Rollei 35 may be a better option.
Other than that, TC-1 can manage virtually any job for a 28mm lens, provided that you aren’t doing anything extreme, can use a tiny viewfinder, and have a hefty budget for a 35mm film camera.
Appendix 1: TC-1’s Japanese print ad and translation.
Above: a scan of a Japanese promo brochure, courtesy Chris Whelan of Yashica Sailor Boy.
I’ve made changes to Google’s machine translation to make it more readable but tried to keep all meaning intact.
Left side: Unless it’s “ultra-high performance,” it’s not worth having. Unless it’s “ultra-small,” you won’t feel like carrying it around. “Ultra-high performance” and “ultra-small”: TC-1 engineers dared to confront this conflicting proposition. And the result is an ultra-precise camera wrapped in a robust titanium shell. This camera’s miniaturized workings might just be the thing to bring out your wistful joy of taking pictures.
Right side: “A business card-sized precision instrument our customers would never want to part with.” That was the engineers’ mission for TC-1. Making another tiny camera isn’t too difficult: we’d only need to scale back the features and degrade the performance of something that already exists. But the direction the TC-1 team took was the exact opposite. We chose the steep path to the “ultimate camera,” one built with the latest technology and top-class glass.
Our perseverance and expertise earned us the “smallest camera in the world”* title for TC-1 — a camera we built in pursuit of perfection.
*As of June 1, 1999, on 35mm film cameras.
To condense high performance and utmost versatility into such a small body, we had to innovate. For example, a dual-motor system is a de-facto solution for compact camera automation. By dismissing this convention, we halved the volume required for the electronics. We then further reduced the motor’s footprint by 30%. The result is the modified “α-series” motor drive, an SLR innovation, to control all moving parts of the camera — shutter being the only exception.
Other innovations featured in TC-1 are the world’s first ultra-high-density six-layer flexible substrate and a large-magnification compact finder.
Operational longevity implies heavy reliance on metals. We wanted TC-1 to create great images and feel comfortable while at it, so we used a zinc die-cast and aluminate treating for the lens barrel. To ensure accuracy, longevity, and reliability in a wide range of operating temperatures, we used metal in all lens assembly components. We also used aluminum alloys for film transport rails and the pressure plate. We added plenty more metal parts to the controls to create that satisfying “click” that only gets better with each use. We were committed to making TC-1 perfect in every way.
We chose titanium for the camera exterior for utmost durability and the best feel in-hand. TC-1’s precise electronics need a robust exterior to handle daily use vigours; titanium is a top candidate for such a job. The metal’s durability allowed us to machine TC-1 with higher precision; its anti-corrosive properties will ensure an unfading appearance for the years to come. Last but not least reason for our metal selection is the pleasant feel of titanium in-hand — an essential attribute for a tool meant to be an everyday companion.
The manufacturing stage of the TC-1 camera required utmost precision in every aspect of the production. Working with titanium required using special techniques and a laborious preparation process, some of which had to be done by hand. The camera’s remarkably-small size required tighter tolerance; even the screws had to be custom-made for TC-1. Tightening those screws requires delicate precision, so we did it by hand too.
Thanks to Minolta’s tradition of friendly competition and cooperation between the research, design, production, and quality control departments, TC-1 is a dream that had finally come true.
